Programmable LCD Keys

All LCD switches from [E³] are fully programmable, RGB-backlit LCD push-button keyswitches with

  • • Command-driven synchronous serial 8-bit interface
  • • Controlled by a two-wire SPI
  • • All switches self-initialize
  • • No permanent clock required
  • • Data transmission speeds of up to 2 MBaud



  • • Only six contact terminals for power, ground, clock, data
      and switch contacts
  • • Graphic LCD with up to 64 x 32 pixel resolution
  • • RGB backlighting in over 1 million colors
  • • Low power consumption
      (<25mA typ.; <60 mA max.)

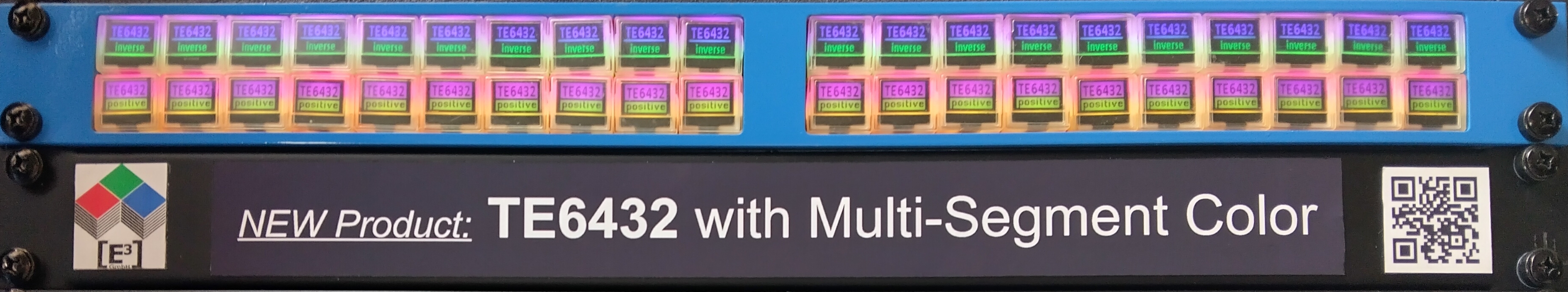

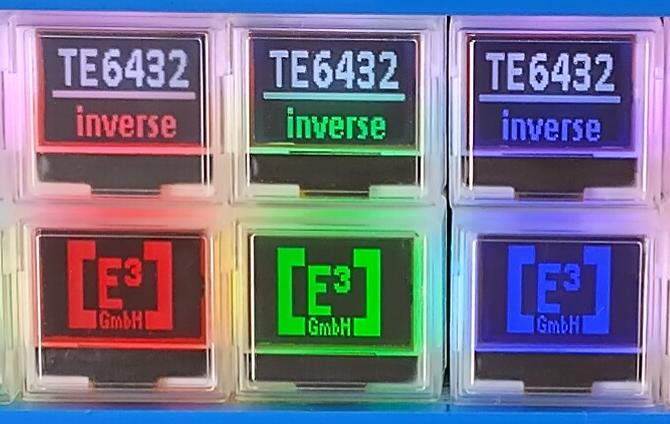

TE6432

All-NEW programmable, RGB-baclit LCD-Keys with MSC™
in a smaller footprint
Same features as SE6432
with Multi-Segment Color MSC™
in a smaller 19.6mm x 17.6mm footprint.

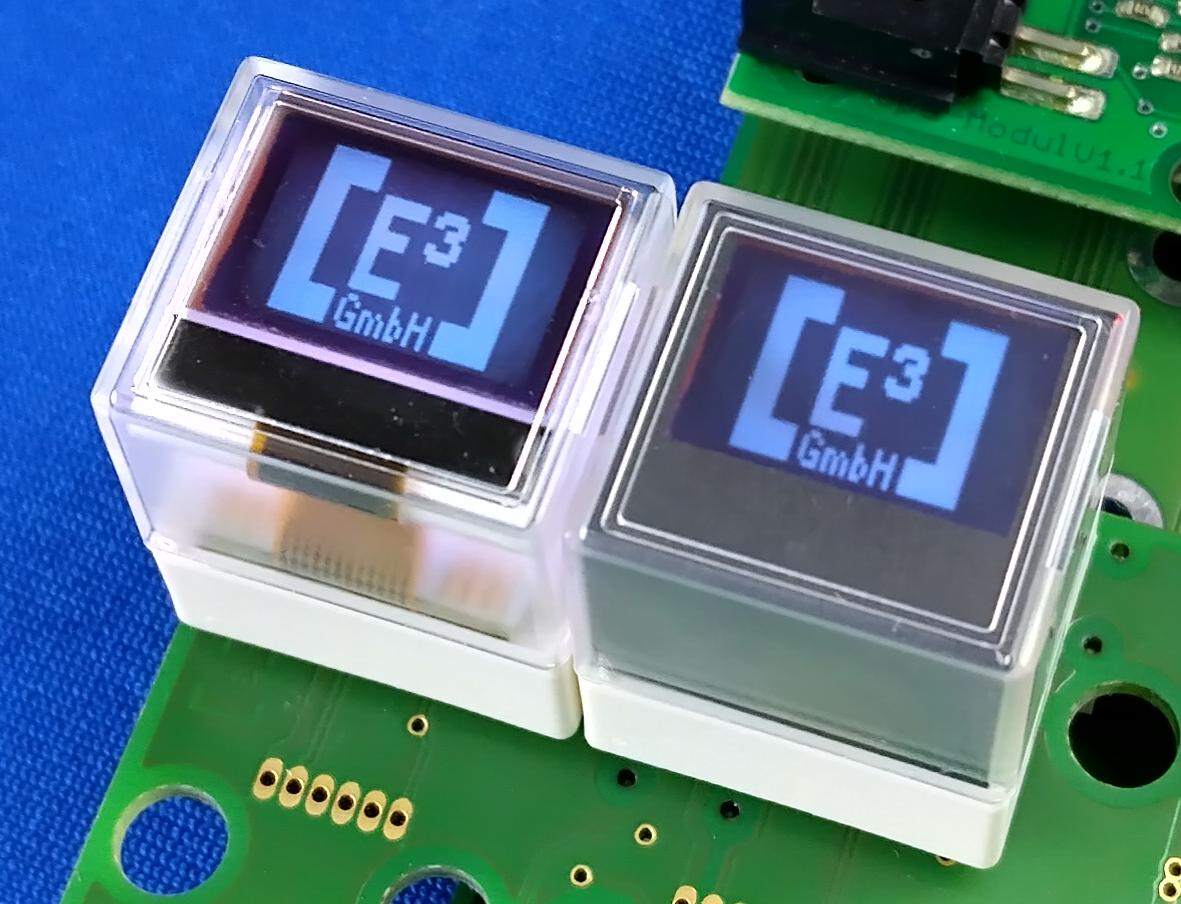

The TE6432 switches are available with
clear key cap TE6432-C (left) or
with black frame insert TE6432-B (right).

Click here for TE6432 datasheet


SC6432

with updated electronics and internal construction

The SC6432 combines all product features of the former SB6432 switches with 64 x32 pixel resolution and RGB backlighting in over 1 million colors with improved power range and current consumption.

The SC switches are 100% backwards compatible to our SA and SB switches allowing for direct replacement in existing systems.


Click here for SC6432 datasheet


SD3624

with Positive Mode™ and Legacy Mode™ support

The SD3624 feature Positive Mode™ display for bitmap and text compatibility with better viewing angle and contrast, improved power range and current consumption while adding Multi Segment Color™ capabilities.

The SD3624 are backwards compatible to the SA3624 with Legacy Mode™ support for systems originally designed for Screenkeys LC24.2 Trend switches

Click here for SD3624 datasheet


SE6432

with Multi-Segment Color™

The new SE6432 switches introduce Multi Segment Color™ with quad RBG LEDs allowing for different colors in the upper and lower LCD segments. Using an inverse DFSTN LCD with all new electronics results in better viewing angle and contrast, improved power range and current consumption.

The SE6432 switches are compatible to our SA and SB switches while adding Multi-Segment Color™ capabilities.

Click here for SE6432 datasheet




SA3624
discontinued


SA6432
discontinued


SB6432
discontinued

The SA3624, SA6432 and SB6432 switches have been discontinued.

Limited availability of service and repair parts for existing customers only.

Customers can transition to the all-new SD3624 with Legacy Mode support
or the SC6432 and SE6432 switches, all of which are backwards compatible.


Back to Top


Development System & LCD Key Controller

The DevBoard utilizes the CC0064 controller which is the control module used in all CP series control panels. This allows for rapid prototyping and testing with immediate software portability from prototype phase to series production.

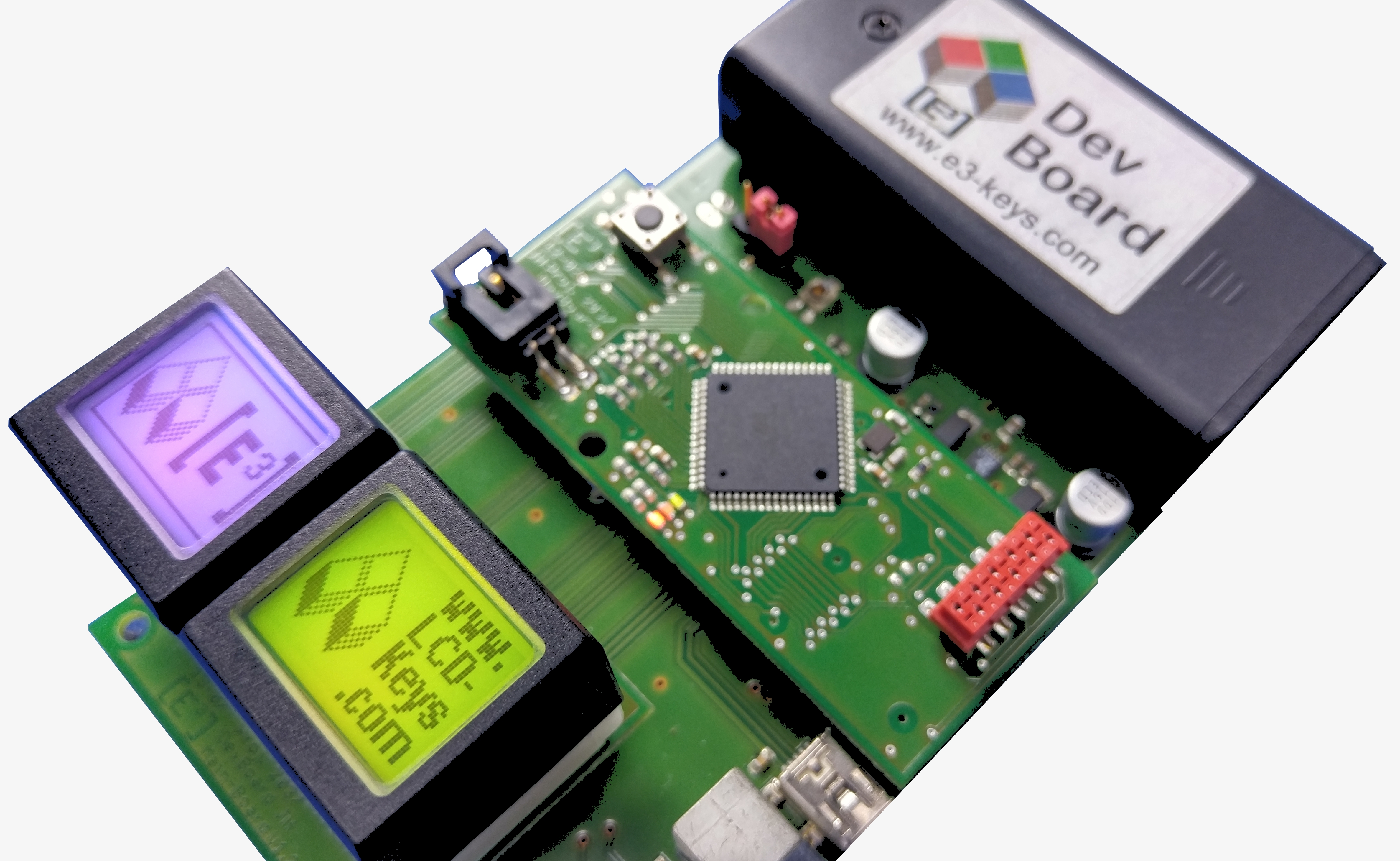

DevBoard


Development system with 2 switches, power options via battery pack, direct power input or over USB cable, and RS232 and USB interfaces on board. The CC0064 controller and 2 switch key matrix can also be mated for an instant 2-button control panel design.

Click here for DevBoard datasheet

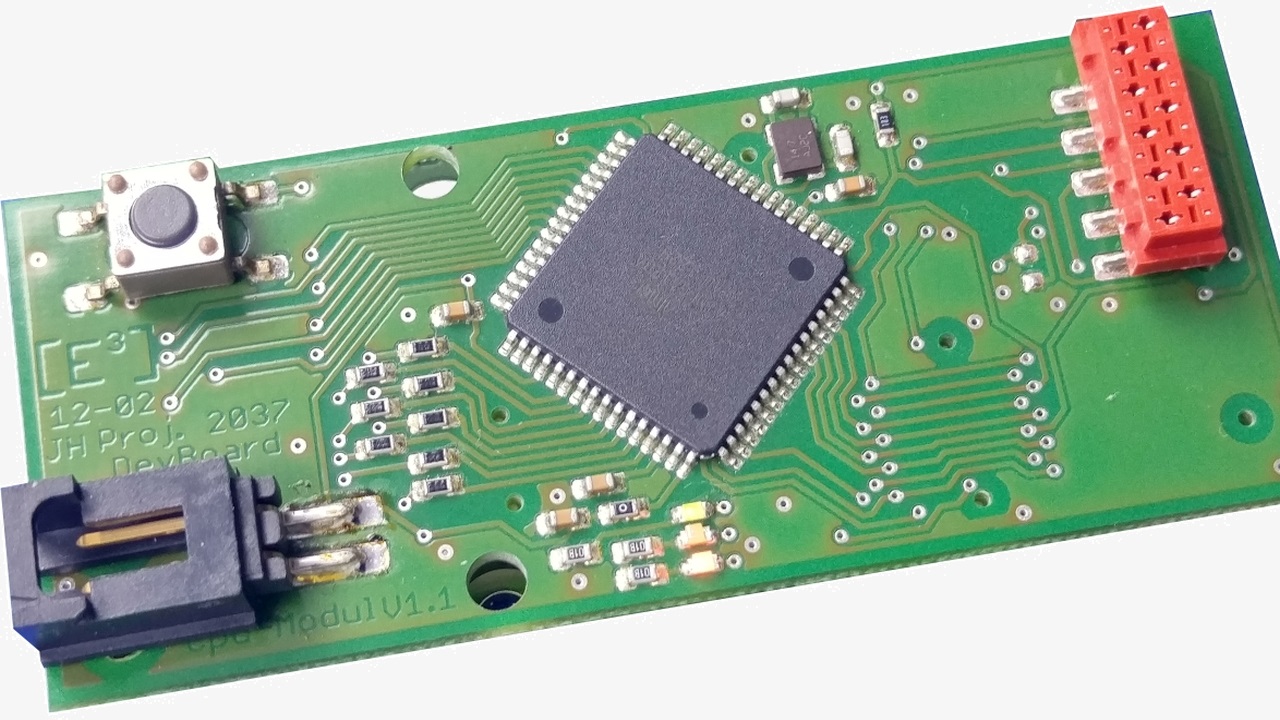

CC0064 Controller


The CC0064 controller features RS232 and USB interfaces. Serial-to-Ethernet interface optional. On-board library storage for 255 bitmap images. The CC0064 is the standard controller for all CP series designs up to 64 Sxnnnn switches.

Click here for CC0064 datasheet

Back to Top


Control Panels

[E³] offers its customers control panels designed around our LCD key technology based on our CC0064 controller or customer specified controls, interfaces and protocols. Our control panels are serial devices making them compatible with various operating systems. Ethernet versions of our panels are available upon request.

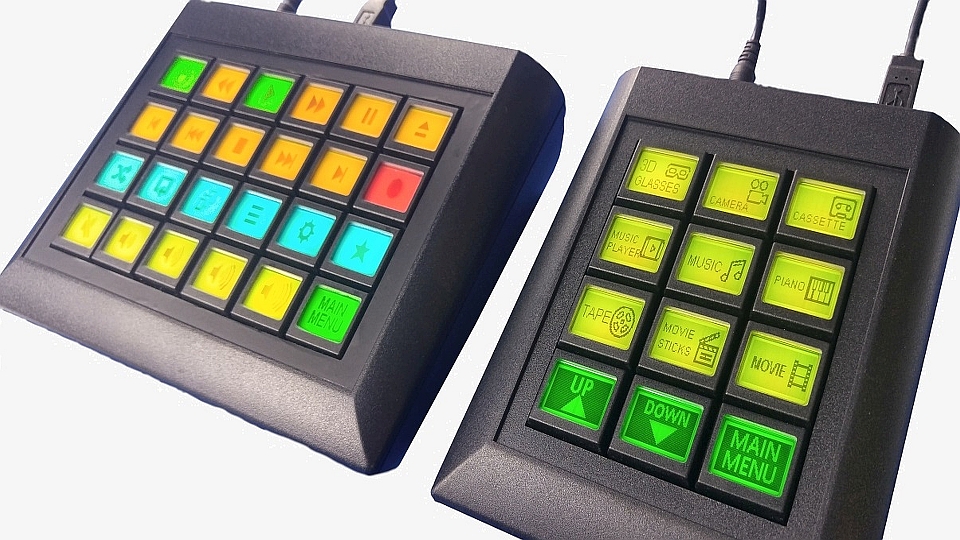

Desktop Control Panels


The desktop control panel series feature 12, 24 or 60 LCD keys in a desktop housing with RS232 and USB interfaces. They support all CC0064 commands and are ideal for desktop application implementation without costly hardware development.



Click here for CP0304 datasheet
Click here for CP0604 datasheet

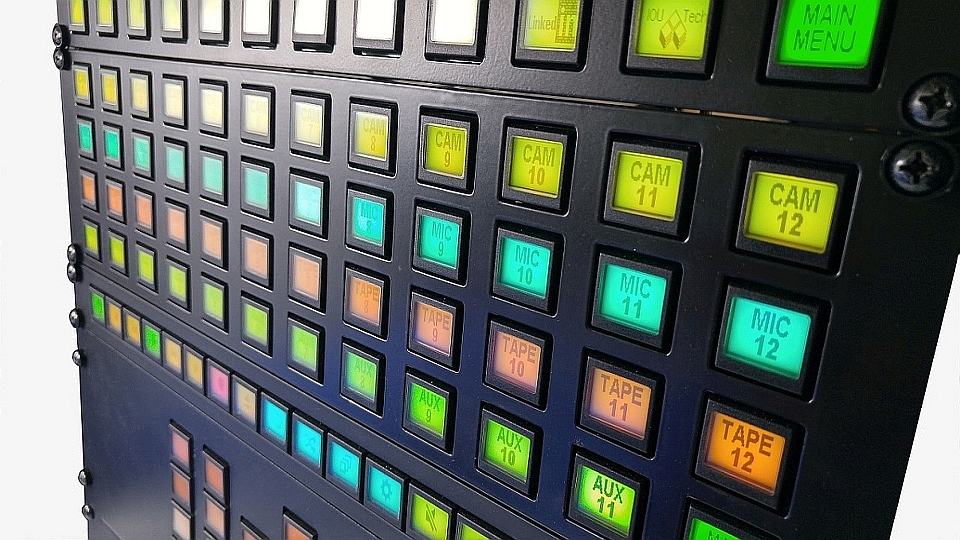

Rack-Mount Control Panels


[E³] offers 19-inch rack-mount control panels based on the CC0064 controller supported commands. Available with 12 or 17 LCD keys per row in 1HU, 2HU and 3HU front panels with fully enclosed electronics or open board designs. In addition to the standard RS232 and USB interfaces, rack-mount panels are also available with Ethernet interface.

Click here for CP12 Series datasheet
Click here for CP17 Series datasheet
Click here for information
on Serial-to-Ethernet enabled panels.

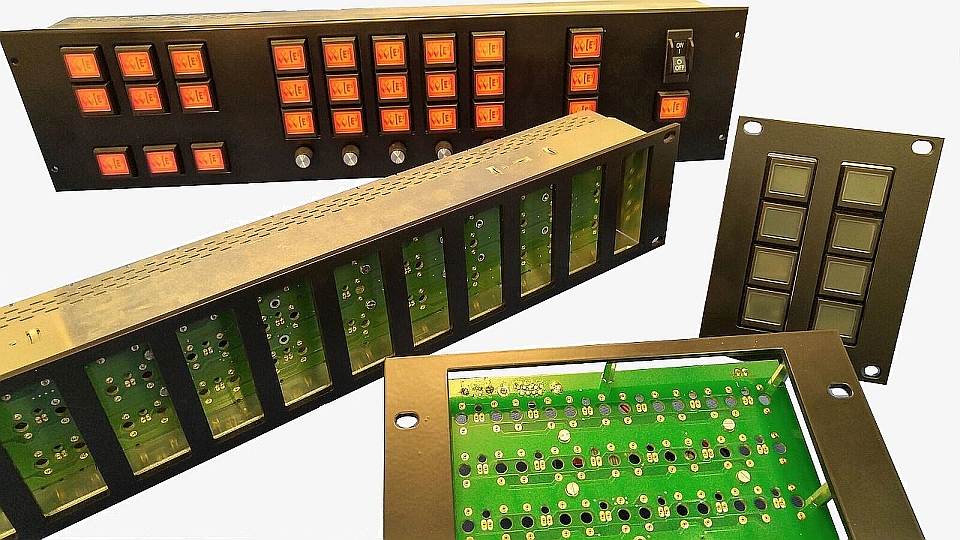

Custom Control Panels


Custom designs and customer-specific control panels enable user defined packaging around our CC0064 controller or custom controllers. We provide custom solutions such as the integration of additional control devices like joysticks, encoders, sliders, t-bars, etc. and other peripheral items such as displays based on customer specifications.

Click here to submit your inquiry
for custom control panels
based on your specifications


Back to Top


Accessories

Accessory items offer greater design flexibility to our customers and enhance our LCD key technology products both for the Sxnnnn switches as well as control panel series.



Socket Pins


Socket Pins allow for the solderless installation of Sxnnnn switches on printed circuit boards of 1.6 mm and 2.0mm thickness. Socket pins also allow for cleaning of PCBs after soldering and before installtion of the Sxnnnn switches.


Click here for SP0000 datasheet.

socket lock

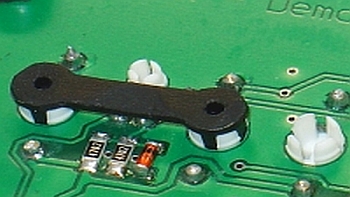

Socket Locks


Socket Locks secure the Sxnnnn switches in the Socket Pins when front panel removal of the switches is not desired. Once secured with Socket Locks the switches can only be removed by first removing the Socket Locks.


Click here for SL0000 datasheet.

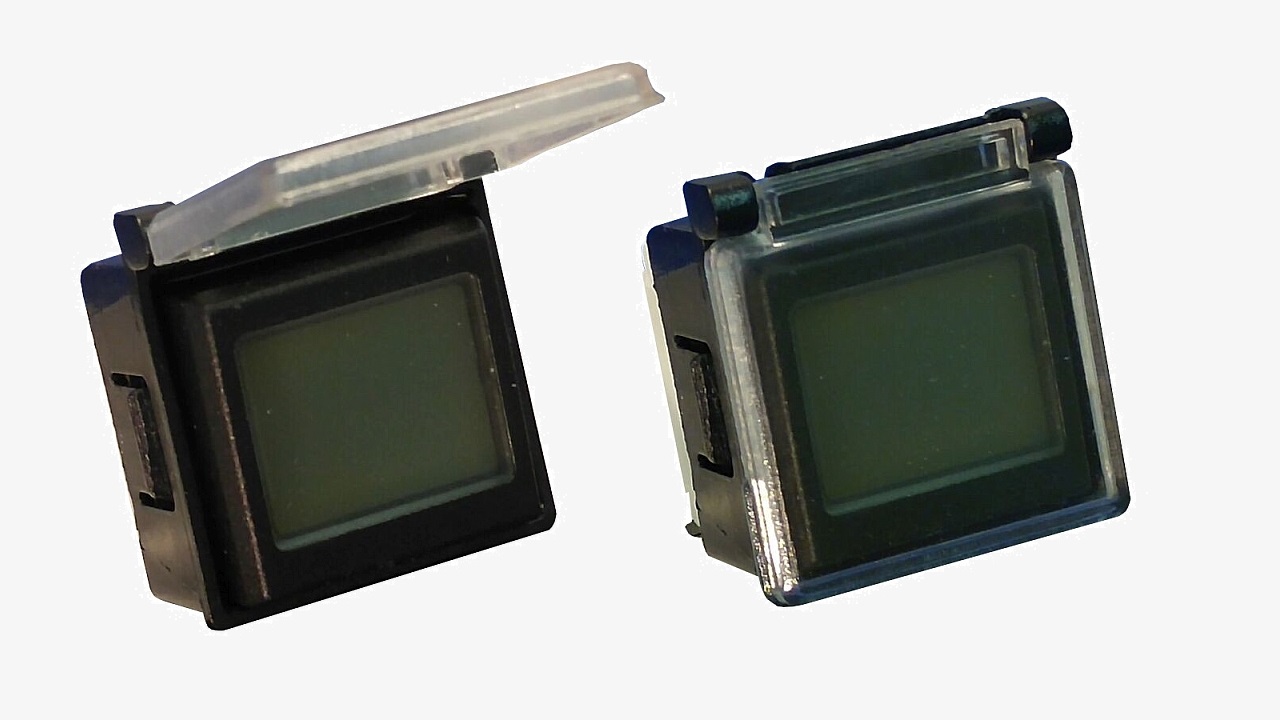

Switch Guards


In military and other mission critical applications it may be desirable to protect the switches from accidental operation through the installation of a Switch Guard. Switch Guards are available in stay-open and stay-closed designs. Minimum order quantities apply.

Click here for SG0000 datasheet.

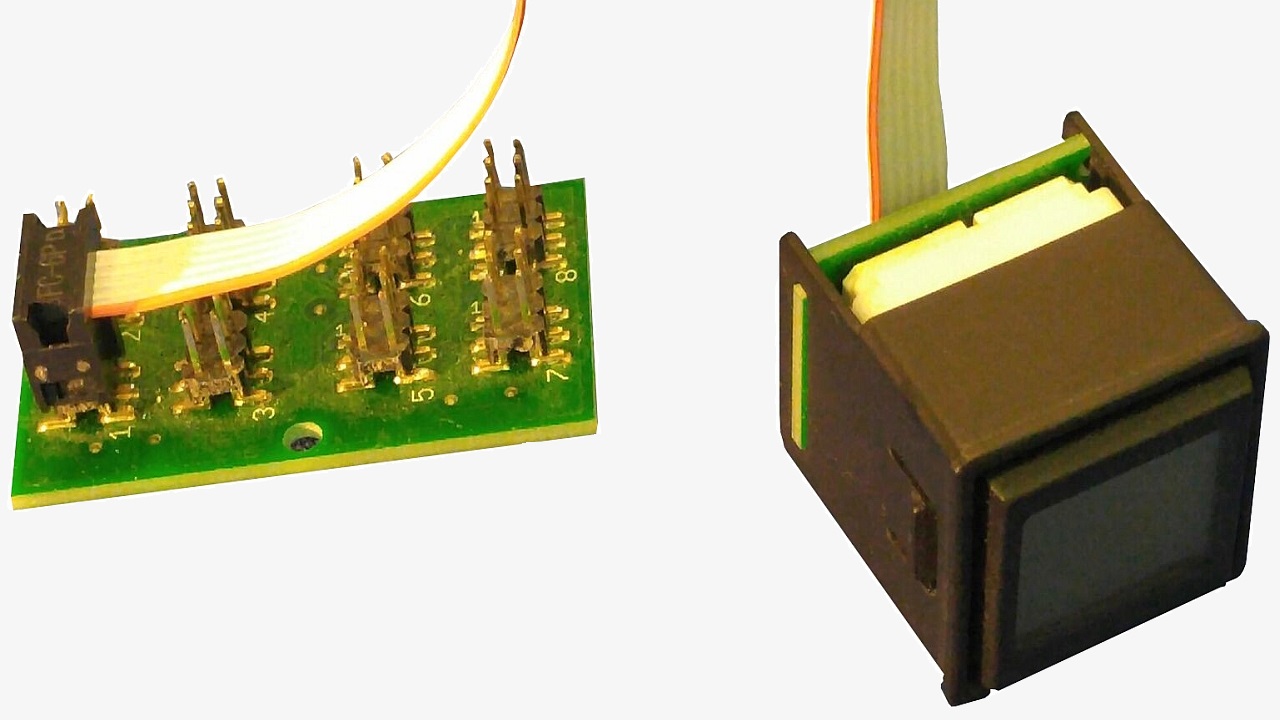

Switch Frames


Panel Frames allow you to mount the Sxnnnn switches directly into a front panel and connect to the CC0064 controller via ribbon cable for maximum design flexibility. Minimum order quantities apply.


Click here for SF0000 datasheet.
